TITAN-SVX-ETH

Features

TITAN Ethernet Servo Motor Controller is a new generation of universal servo controller with advanced servo technology to drive most types of servo motors.

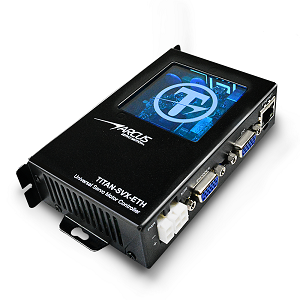

TITAN Ethernet Servo Motor Controller
  • Supports most types of servo motors: Stepper, Brushless Servo, Linear, Shaft, DC, and Voice Coil
  • Supports most commonly used communications: Ethernet, USB, and RS485
  • Comes with many advanced motion control features: Auto Parameter Detection, Auto Tuning, Force/Torque control, and Multi-thread Motion Programming
  • Uses the intuitive and easy-to-use TITAN Software that enables anyone to startup the servo motion system within minutes
  • Meets the new challenges and requirements in the emerging field of Industry 4.0/Industrial IoT with 2ndSight motion edge analytics algorithms and the new Arcus Servo 5.0 standard

Motion

  • Configurable as Controller Mode or Pulse Mode
  • Motor Types Supported: 2-phase Stepper, 3-phase BLDC Rotary, 3-phase Linear, Voice Coil
  • Easy to use Auto Motor Parameter Detection Wizard and Auto Mechanical Parameter Detection Tuning Wizard
  • Motor and System Database File System Support
  • Open-Loop Hold and Dynamic Gain
  • Advanced Plotting and Probing
  • Simplified Gain Setting
  • Force / Torque Control

Communication

  • USB 2.0 using Virtual Serial Comport
  • RS485 with 115K Baud
  • Ethernet 100M
  • Protocols Supported: Arcus ASCII, MODBUS RTU, MODBUS ASCII

IO

  • Eight Opto-isolated Digital Inputs
    -Controller Mode – Limit+, Limit-, Home, 5 General Inputs
    -Pulse Mode – Pulse, Dir, Enable, Clear, Reset, 3 General Inputs

  • Three Opto-isolated Digital Outputs
    -Controller Mode – Three General Outputs
    -Pulse Mode – In-pos, Alarm, One General Output

  • One Analog Input 0-5V range

Power/Size

Power

  • Voltage Input Range: 24VDC to 48VDC
  • Motor Peak Current: 8A

Size

  • 115 x 29 x 71.4 mm

Max Ratings

  • Digital Input Forward Diode Max Current: -25mA
  • Digital Output Collector Max Voltage: +24V
  • Digital Output Sink Max Current: -45mA
  • Operating Temperature: -20 to 80˚C
  • Storage Temperature: -55 to 150˚C

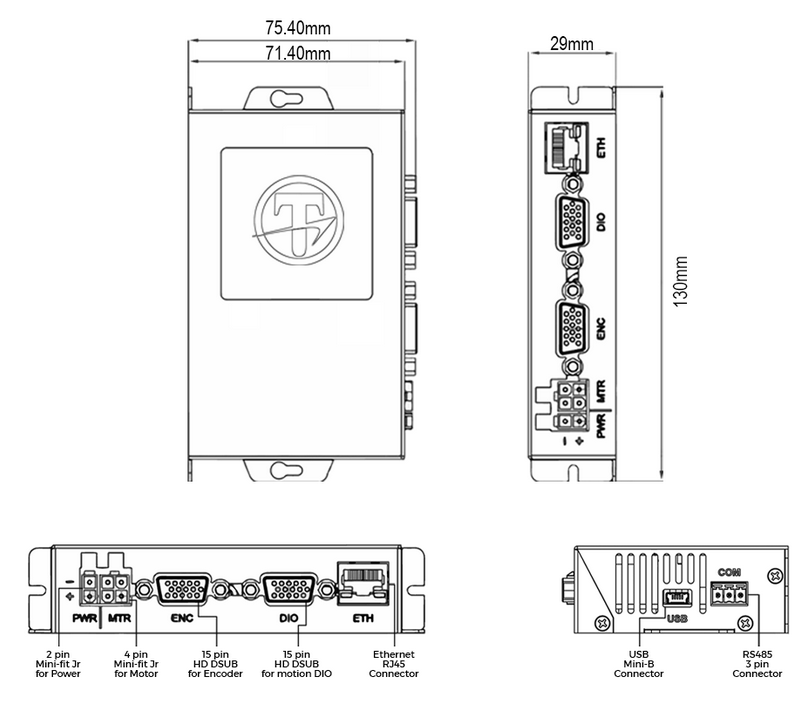

Dimensions
