Spec
S080D | S080T | S080Q | ||
Continuous Force | (N) | 1.8 | 2.7 | 3.5 |
Continuous Current | (A rms) | 0.8 | 0.8 | 0.8 |
Acceleration Force | (N) | 7.2 | 10.7 | 14 |
Accel. Current | (A rms) | 3.4 | 3.4 | 3.4 |
Shaft Diameter | (mm) | 8 | 8 | 8 |
Forcer Size | Double windings | Triple Windings | Quadruple Windings | |
Forcer Length | (mm) | 40 | 55 | 70 |
Forcer Weight | (kg) | 0.05 | 0.06 | 0.08 |
Air Gap | (mm) | 0.50 | 0.50 | 0.50 |

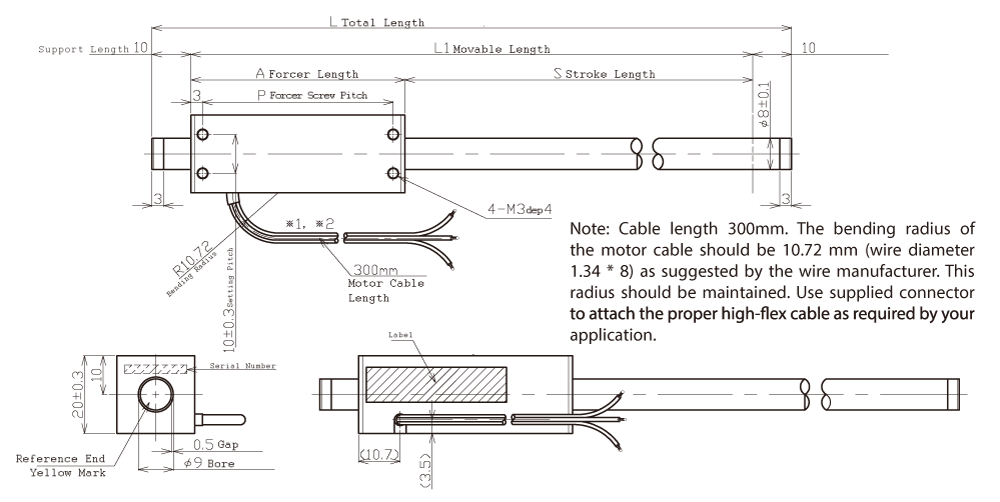

Dimension Guide

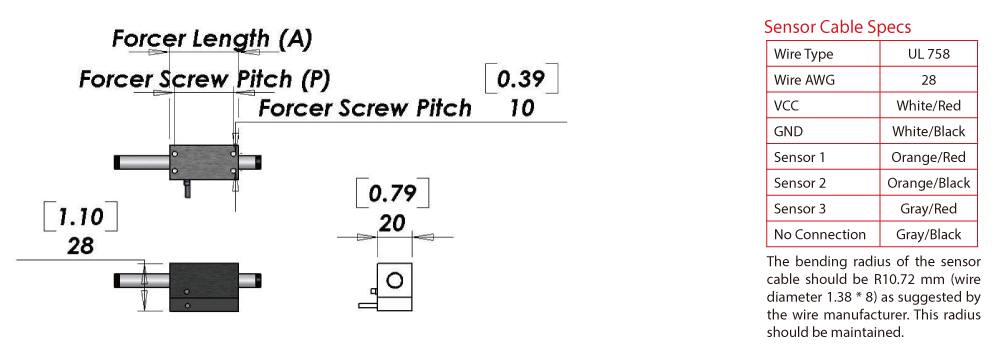

Hall Effect Specs
