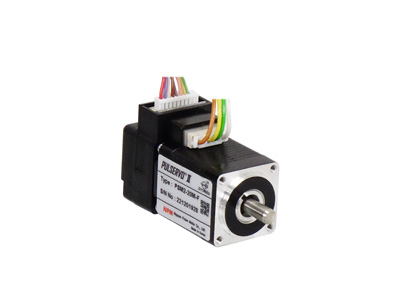

Standard type, frame size 20 mm square
•Motor frame size 20 mm square
Two stator lengths, 28 mm and 38 mm are available.
The encoder resolution is 4000P/R.
Please purchase a motor and driver set.
Specification
| Motor model | Unit | PSM2-20M-F | PSM2-20L-F |
|---|---|---|---|
| Rated current / phase | A | 0.5 | 0.5 |
| Holding torque | N・m | 0.014 | 0.023 |
| Rotor inertia | Kg・m2 | 2.5×10-7 | 3.3×10-7 |
| Weight | g | 80 | 104 |
| Stator length | mm | 28 | 38 |
External dimensions/ Torque

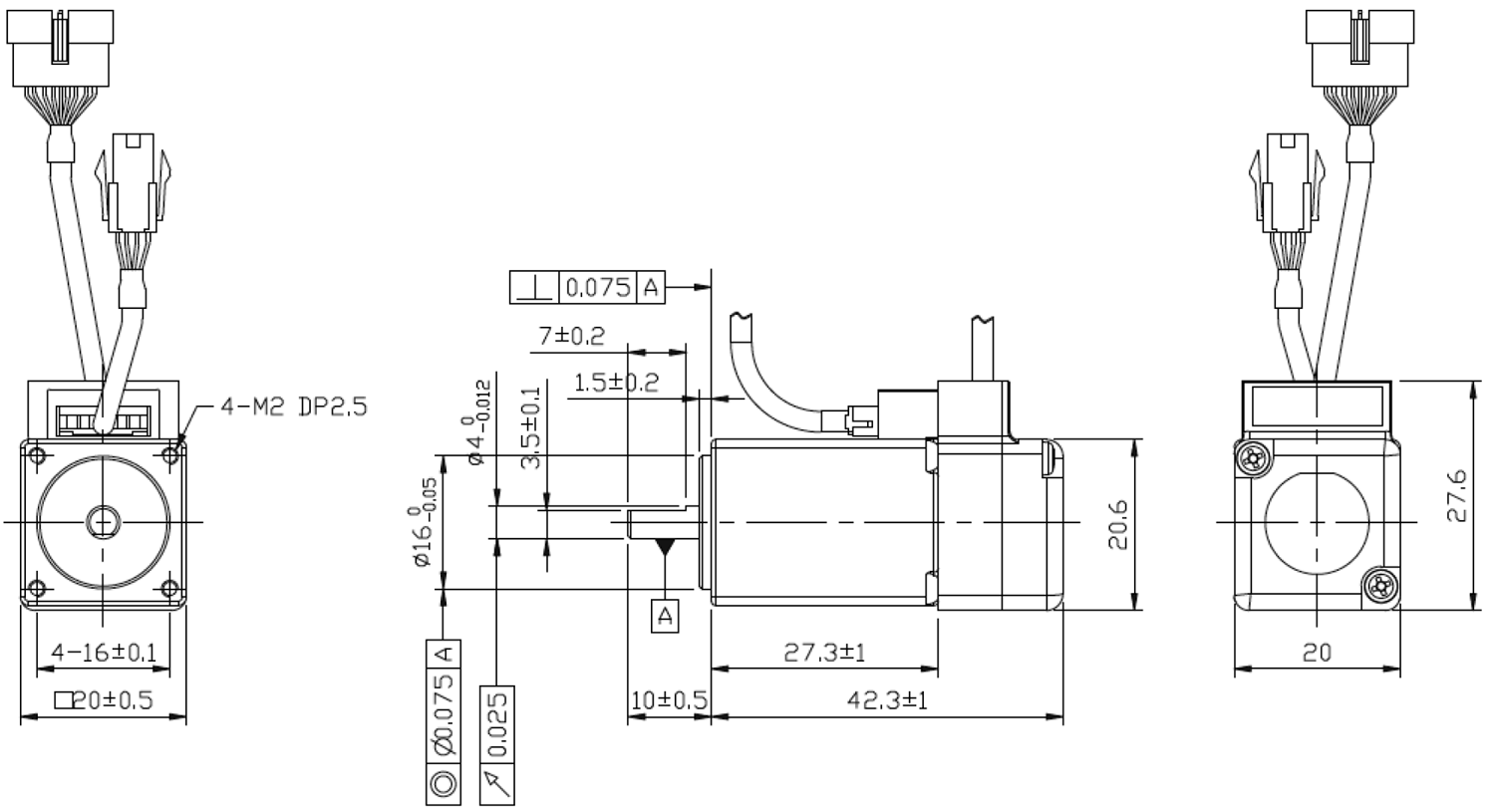

PSM2-20M-F
*Click to zoom in.

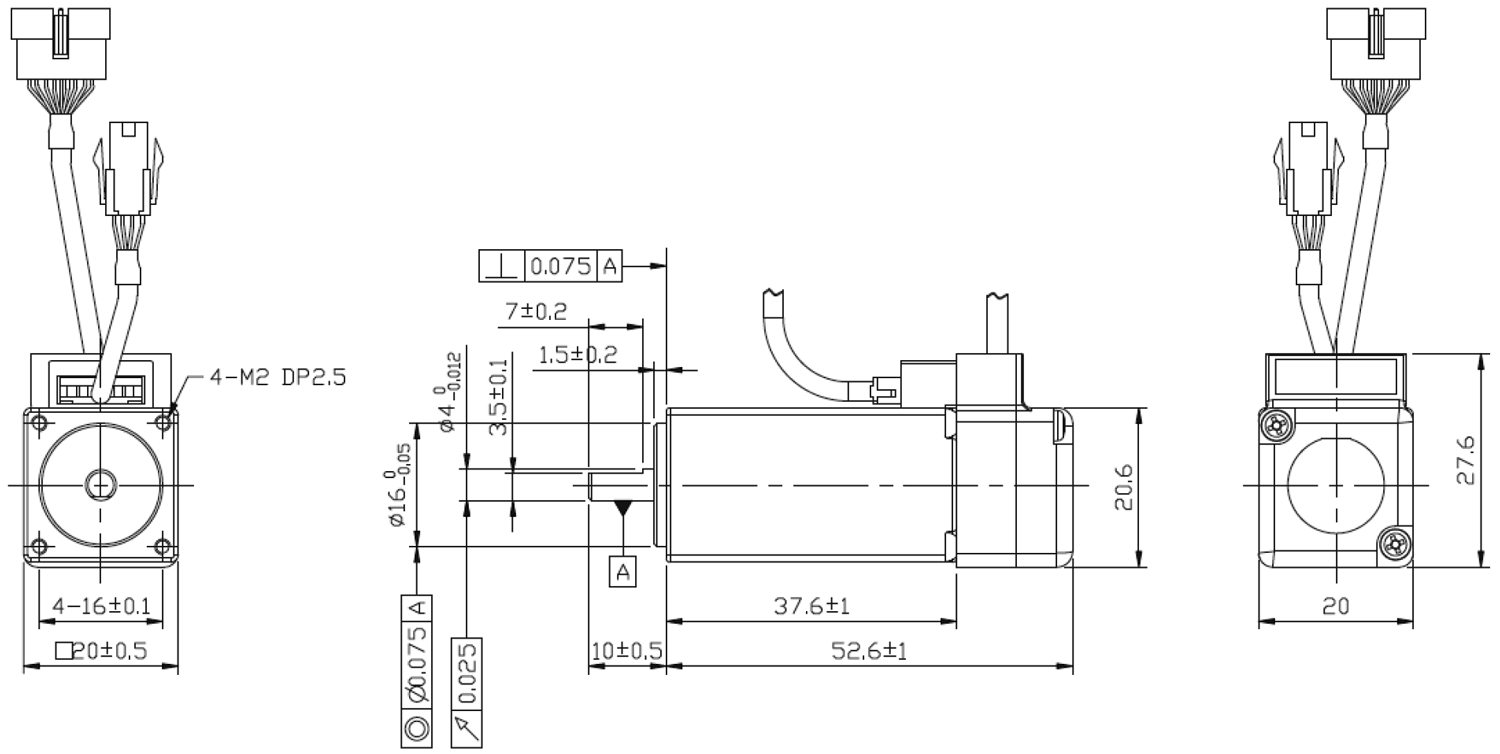

PSM2-20L-F
*Click to zoom in.

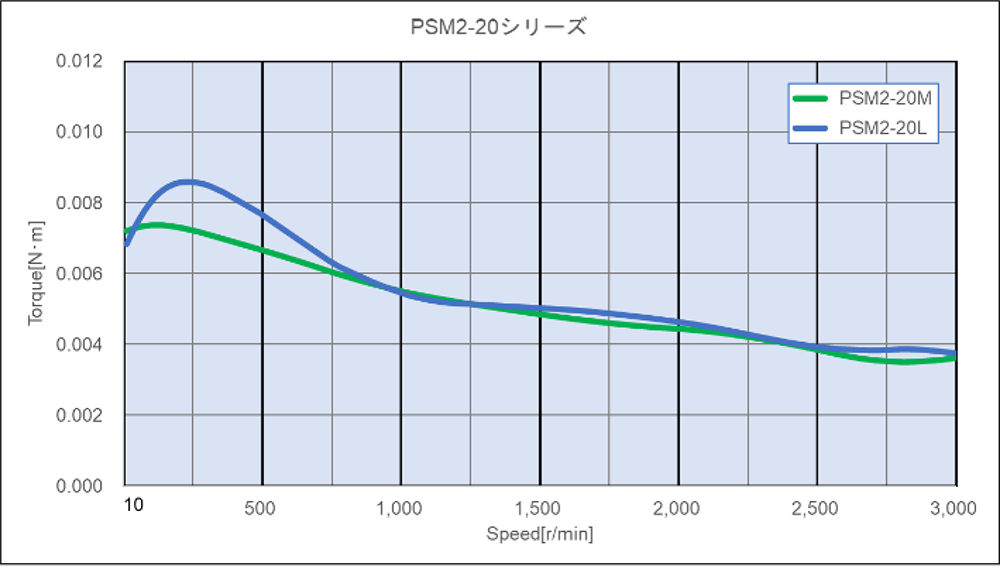

Torque characteristic (Common)
*Torque characteristics are reference only, not a guaranteed value.
*Click to zoom in.
