We have released information on the EtherCAT supported 2-phase stepping motor driver, "EC-AD series".
The release will be
EC-AD1442A1 (bipolar constant current, 1 axis) November 2020
EC-AD1241A4 (Unipolar constant current, 4 axes) July 2020
Please contact us if you are interested in our products.
EC-AD1442A1
2-phase bipolar constant current, 1-axis stepping motor driver with EtherCAT support
[Features]
・Fieldbus :"EtherCAT"
・Drive Profile CiA402, PP mode supported, DC synchronization: 250us or more
・Motion control core, NPM pulse control LSI: PCL6115 installed
・3.0A/phase (max), current up during acceleration/deceleration, microstep 1/32 division,
Open loop
・Machine position count by encoder input
・Excellent cost performance
・Small and compact

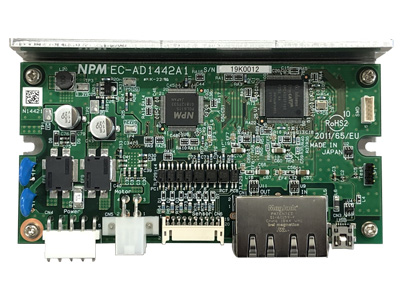

EC-AD1442A1
EC-AD1241A4
2-phase unipolar constant current, 4-axis stepping motor driver with EtherCAT support
[Features]
・Fieldbus: "EtherCAT"
・Drive Profile CiA402, PP mode supported, DC synchronization: 250us or more
・Motion control core, NPM pulse control LSI: PCL6046 installed
・2.5A/phase (max), intelligent current control, micro step 1/32 division,
Open loop
・Machine position count by encoder input
・Excellent cost performance
・Small and compact

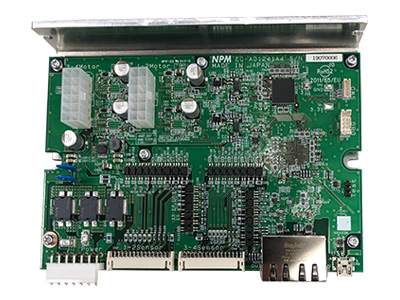

EC-AD1241A4
